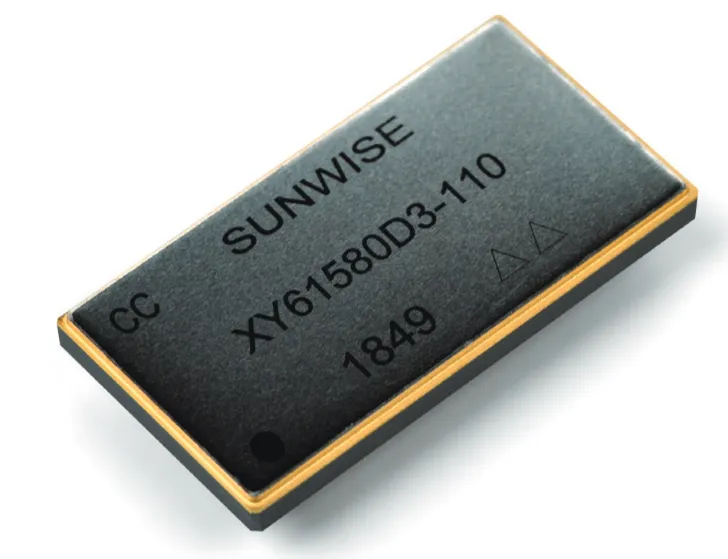

XY61580 Radiation-Resistant 1553B Bus Controller
Quick Overview
The XY61580 is a high-performance bus controller integrating BC, RT, and MT functions. It provides a complete and flexible interface between microprocessors and the 1553B data bus. Fabricated with CMOS technology, it features strong radiation resistance, high-speed data transmission, and low power consumption. The controller is compatible with international standard products of the same type.
Key Specifications
| Parameter | Value |
|---|---|
| Process Technology | 0.5 μm |
| Dimensions (mm) | 48 × 26 |
| Weight (g) | < 15 |
| Operating Temperature (°C) | −55 to +125 |
| Storage Temperature (°C) | −65 to +150 |
| Communication Interface | 1553B / PCI |
| Package Type | CDIP70 |
| Quality Grade | CAST C |
Key Features
- Integrated MIL-STD-1553 interface terminals.
- Flexible processor and memory interface.
- Standard 4K×16bit RAM with optional parity generation and verification.
- Automatic BC retransmission and flexible RT data buffering.
Applications
- Used in aerospace embedded electronic systems.
Related Products
- See related products in this series
Documentation & Resources
Frequently Asked Questions
Common questions about XY61580 Radiation-Resistant 1553B Bus Controller
What spacecraft platforms is this system compatible with?
This system is compatible with microsatellites, nanosatellites, CubeSats, and larger spacecraft platforms. It features modular design with standard interfaces for easy integration into various mission architectures and supports both commercial and scientific applications.
How does this system enhance spacecraft capabilities?
The system provides advanced functionality with reduced size, weight, and power consumption. It offers improved reliability through redundancy, radiation tolerance, and proven space-qualified components with extensive flight heritage.
What are the key performance specifications?
Key specifications include low power consumption, wide operating temperature range, high radiation tolerance (TID >100 krad), compact form factor, and long operational lifetime (>10 years). The system meets all relevant space qualification standards.
How is system integration and testing performed?
We provide comprehensive integration support including detailed interface specifications, test procedures, and simulation tools. All systems undergo thorough environmental testing, functional verification, and compatibility validation before delivery.
What documentation and support is available?
Complete technical documentation includes user manuals, interface control documents, test reports, and application notes. Our engineering team provides integration support, training, and ongoing technical assistance throughout the mission lifecycle.
