XHTF1040B CPT Atomic Clock
Overview
The XHTF1040B CPT Atomic Clock combines miniature design with advanced timing capabilities, specifically optimized for high dynamic situations. For detailed information, please contact us.
Features
- Miniature structure
- 3.3V low power supply, low consumption
- UART serial port communication
- Compatible with SA.45 pins
- 1PPS input synchronization and 1PPS output
- TOD short message output
- Be suitable for high dynamic situation
Main Specifications
Core Specifications
| Specification | Details | |
|---|---|---|
| Phase Noise (SSB) | @10Hz | -90dBc/Hz |
| @100Hz | -120dBc/Hz | |
| @1KHz | -140dBc/Hz | |
| @10KHz | -145dBc/Hz |

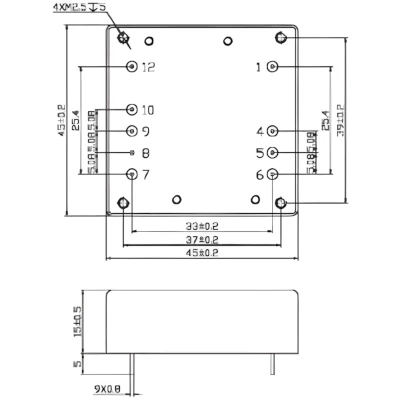

Pin Connection Details
| Pin Number | Function | Pin Number | Function |
|---|---|---|---|
| 1 | NC | 7 | +3.3V |
| 2 | NC | 8 | GND |
| 3 | NC | 9 | 1PPS input |
| 4 | Lock status | 10 | 1PPS output |
| 5 | TXD | 11 | NC |
| 6 | RXD | 12 | 10MHz output |
Application
- Widely assembled on the time frequency system for satellite navigation, underwater navigation, digital communication, network synchronization, railway transportation etc.
